Single Facer Series

Calendar Type Single Facer(5 mins change)

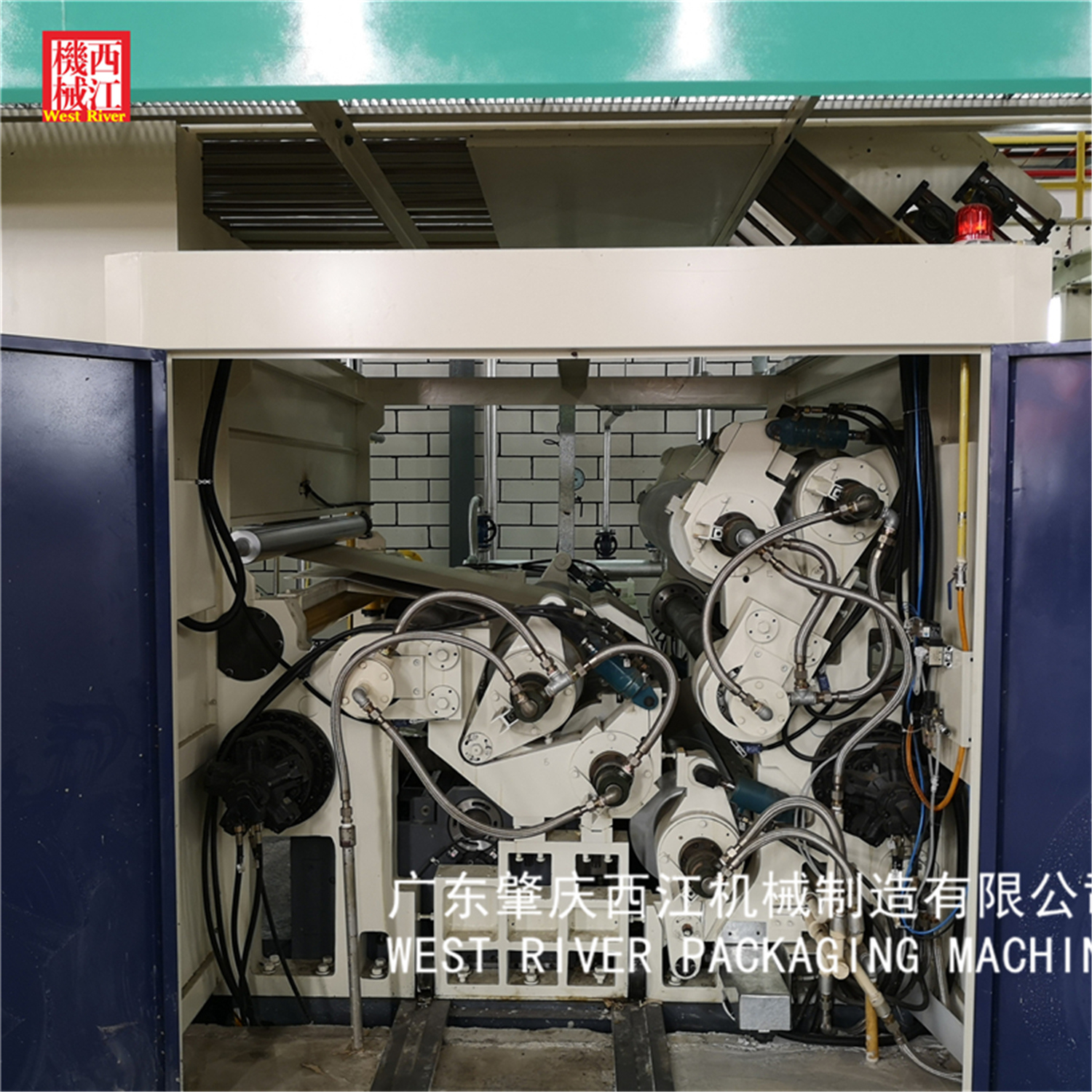

Inner Vacuum Calendar Type Single Facer, Two flutes In One Single Facer Design, Fastest Change Corrugated Rollers in 5 mins, High Strength Cardboard Production, Fully Hydraulic Control System


Inner Vacuum Calendar Type Single Facer

Width: 1400, 1600, 1800, 2000, 2200, 2500, 2800, 3000mm

Speed: 150m/min - 300m/min

Change flutes:  5 minutes(fastest change flutes)


Features:

(1) The whole machine control by the computer and equip with two pairs of corrugated roller, so can achieve Multiple Flute Type fast change together but no need to move out and change separately, this method can enhance the production efficiency, mitigate the worker’s labor intensity, the whole process just need 5 minutes.

(2) The whole machine use hydraulic control technic, ensure the flute can high speed setting and glue perfectly.

(3) The corrugated roller use gear clutch achieves independence transmission, no need to equip with locking mechanism.

(4) Use direct-drive three points transmission, the running speed will faster than before.

(5) This machine should work in middle and high speed corrugated paper production line.

(6) Use high pressure centrifugal fan with muffler, so the noise is low.

(7) The roller is make from special alloy steel, the size is  φ430mm, We use heat treatment technic to do the precision grinding. The surface is done by Hard Chromium Plating.

(8) Each paper guide roll, preheater, press roller do the grinding treatment and Hard Chrome Plating.

     Flute, H=    mm.

     Flute, H=    mm.

(9) The whole machine use high temperature centralized oil lubricating.

(10) Equip with infrared broken sensor in order to achieve paper breaking automatic protection; when the paper is broken, the press roller will exit and the glue plate also exit.

(11) Sizing control include electric control and automatic control.

-According to the production line’s running speed, via the motor achieve requested sizing amount.

-When you set automatic, according to the running speed’s changing, the sizing amount can be adjusted by the encoder and system and also has numerical value indicating on the panel, ensure the sizing amount is stable when the corrugated machine is do the speed change and also make sure the single ply’s quality is stable too.
