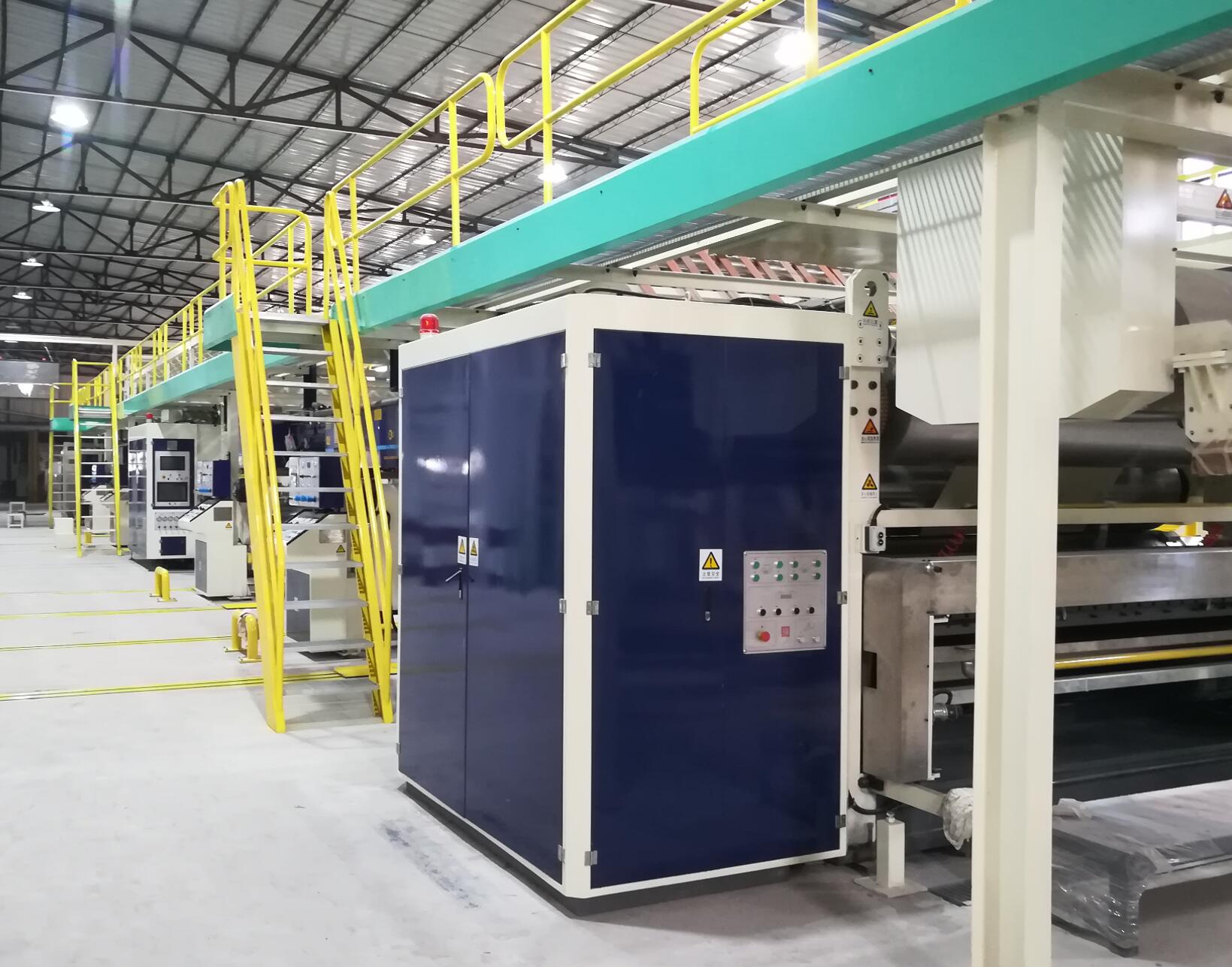

Positive Type Cassette Single Facer

Positive Type Structure, make the flute paper stick to the corrugated rollers evenly, produce perfect flute cardboard

Width: 1400, 1600, 1800, 2000, 2200, 2500, 2800, 3000mm

Speed: 250-350m/min

Change flutes: 15 minutes

Servo Control and Servo Drive

WEST RIVER backhoff cruise total control system

The diameter of the corrugated roller is Φ 460*360mm, high speed design, hard chrome or tungsten carbide for option

Laser meter control the gaps in the production and intelligently adjusted according to different flutes, paper and speed.

Main performance characteristics:

1. Modular design of the whole machine, easy to adjust and maintain;

2. The new positive structure can minimize the strength of the cardboard damaged by the copper knife slot.

3. Servo glue control, the glue thickness is accurate to 0.01mm, which can sastarch cost to the largest extent for users;

4. Servo vector control the gap between the glue roller and the corrugated roller to ensure the efficient production of each type of corrugated and gram weight cardboard;

5. The whole machine is fully hydraulically controlled, which is easy to control the pressure of the press roller, corrugated roller and glue roller, and the production is stable;

6. The cassette change time is 15 minutes. There is no need to disassemble any bolts, equipped with an automatic guide mechanism, and one key access. Automatic discharge of residual steam, quick plug steam connector, safe and reliable operation. Equipped with electric trailer, easy to handle;

7. The gear roller is driven by independent power, and the patented gear embedded direct connection structure is efficient, energy-saving and convenient for maintenance;

8. Integrated cruise control system, the production management and the machine are controlled by the same panel, and the 15 inch large screen displays the operation status, function selection, fault indication, fault arrangement, remote maintenance, etc., which is easy to operate and learn;

9. The electric glue system can operate automatically when the main machine stops to prevent the slurry from settling and solidifying;

10. The core paper can be equipped with an arc hot plate, which can be quickly heated and shaped to provide cardboard strength and flutes.
