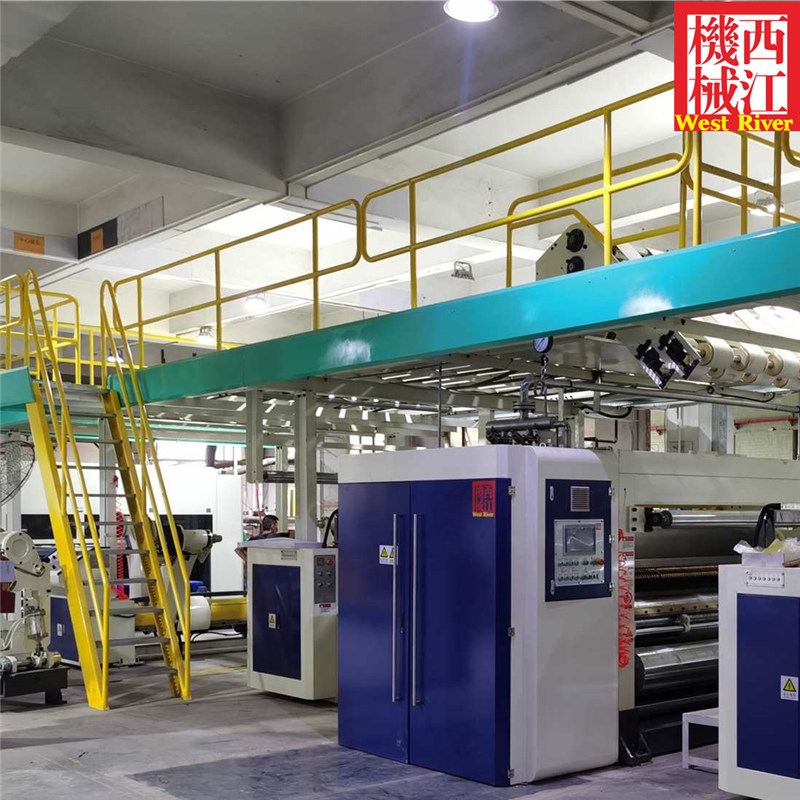

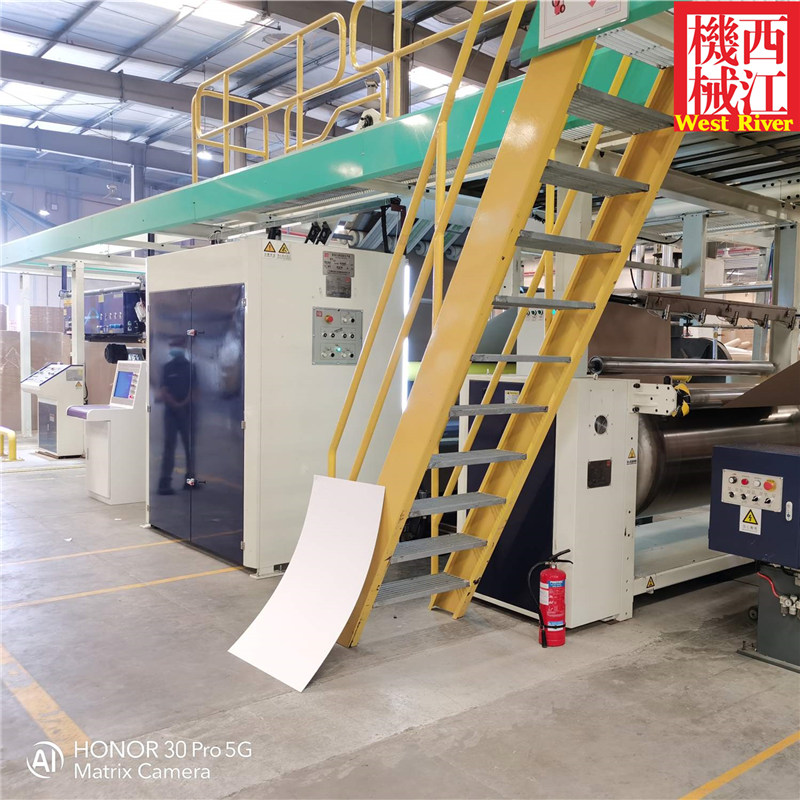

Corrugated Cardboard Production Line
2Ply + 3ply corrugated cardboard making machines from paper craft paper rolls
Fully Automatic Whole Carton Plant Design Solution from Corrugated to printing, flat die cutting, fold gluing, full factory conveying system of paper roll and cardboard, finished machines....
West River offers fully automatic design solutions for 2ply and 3ply single face corrugated machines. These machines are capable of manufacturing 2-layer and 3-layer cardboard using kraft paper roll materials.
WEST RIVER 2-ply and 3-ply corrugated cardboard making machines are used in the production of corrugated cardboard sheets. The machine are designed to create the layers of corrugated cardboard by combining paper and adhesive.

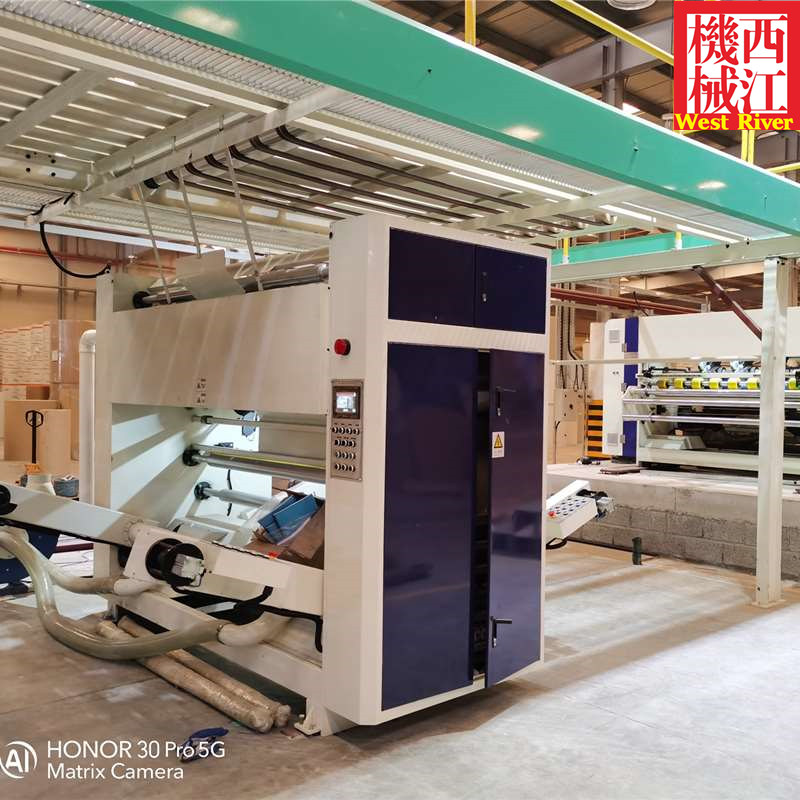

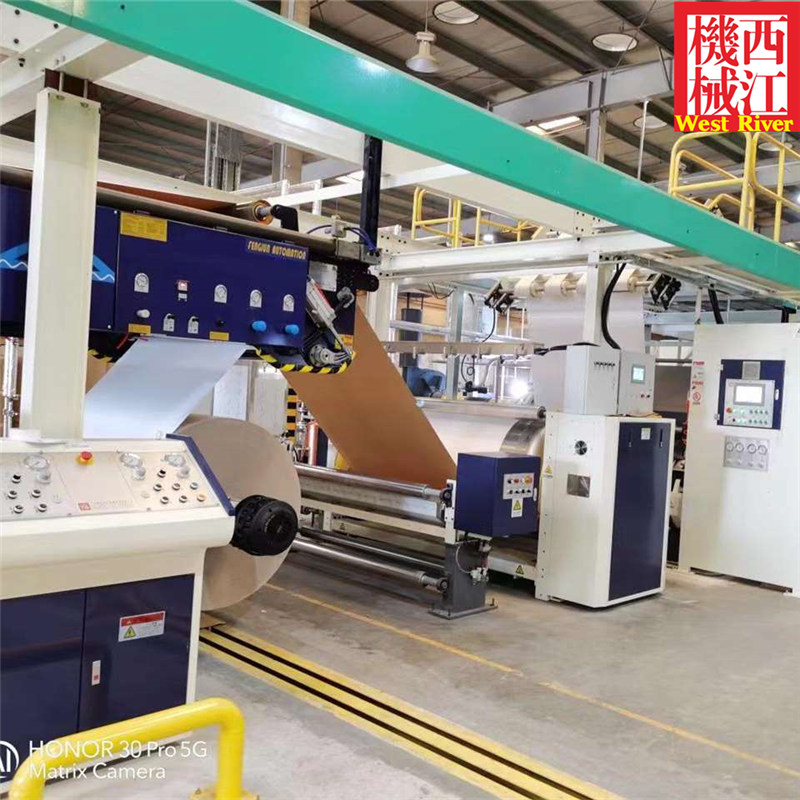

A 2-ply corrugated cardboard making machine typically consists of a single facer, which is responsible for creating the corrugated layer, and sheeter, which is for slitting and cutting the sheets into different size. The machine feeds the paper through the single facer, where it is corrugated using a series of heated rollers to make into 2ply single face board. The corrugated paper then passes through the bridge to the sheeter, where will be slitted and cut into different size.
A 2-ply corrugated cardboard making machine typically consists of a single facer, which is responsible for creating the corrugated layer, and sheeter, which is for slitting and cutting the sheets into different size. The machine feeds the paper through the single facer, where it is corrugated using a series of heated rollers to make into 2ply single face board. The corrugated paper then passes through the bridge to the sheeter, where will be slitted and cut into different size.
A 3-ply corrugated cardboard making machine follows a similar process, but with an additional step to add the third layer of paper. After the first layer is corrugated and adhesive is applied, a second layer of paper is added on top. This two-layered sheet then passes through another set of heated rollers to create the second corrugated layer. Finally, adhesive is applied to the 2ply corrugated layer, and a third layer of face paper is added on top, bonding all three layers together.

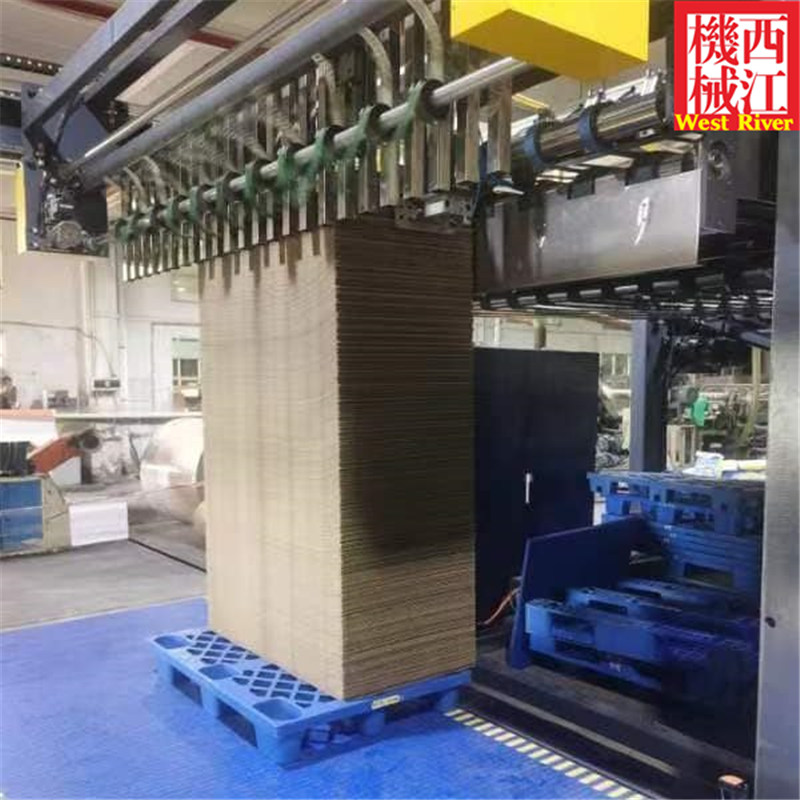

WEST RIVER design combines the two corrugated machines together to create a multi functions corrugated machines for customers. It is cassette single facer, fully automatic temperature, gluing, tension and moisture control, down stacker and computerize control for automatic order changes. The special design corrugated cardboard making machines is automated and controlled by computer systems to ensure accurate and efficient production. It is suitable for the customers who look for various cardboard production but in small factory size and lower investment budget, it is design for flexo carton box and offset carton box manufacturing packaging industry to create corrugated cardboard sheets used for various applications such as boxes, displays, and protective packaging.
