Corrugated Cardboard Production Line
Europe Smart 5.0 5Ply Corrugated Cardboard Production Line Design
Europe Smart 5.0 Corrugated machine design, Intelligent 5Ply Corrugated cardboard making machine, pre-print cardboard production line, Double AA cardboard production line, full factory conveying system of paper roll and cardboard, finished machines....

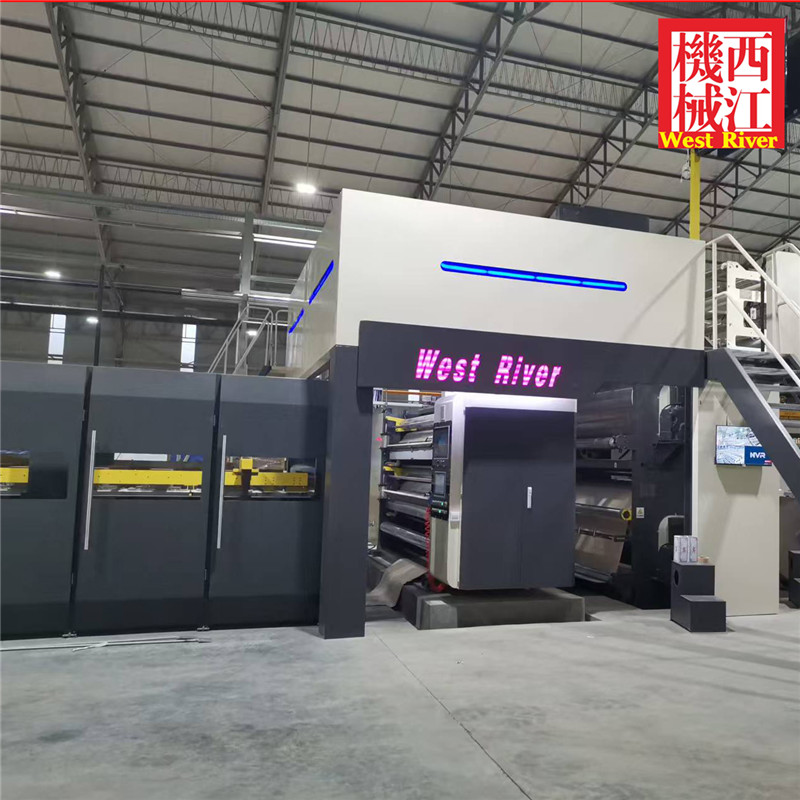

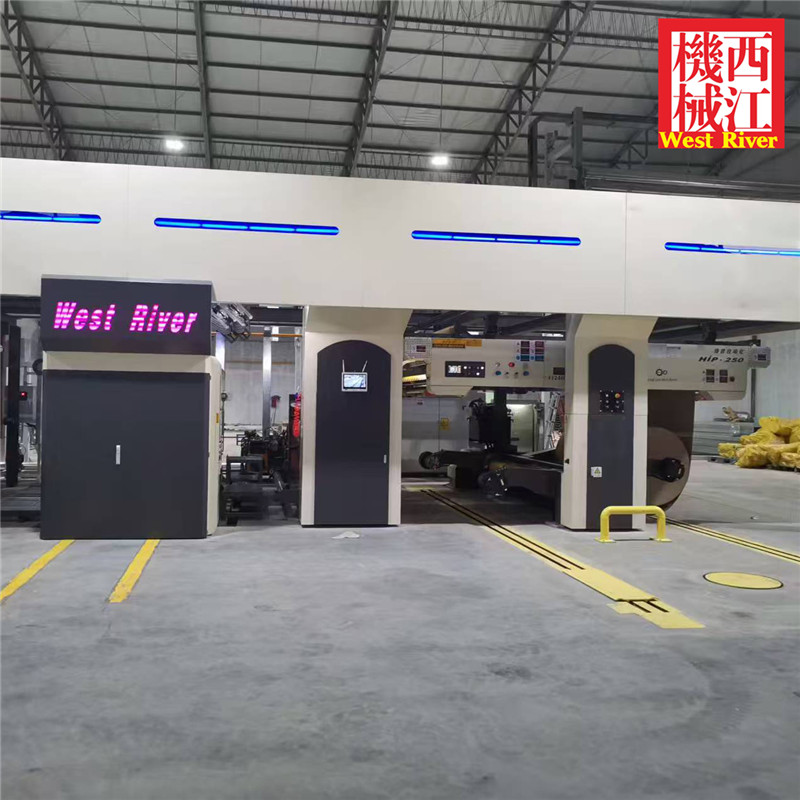

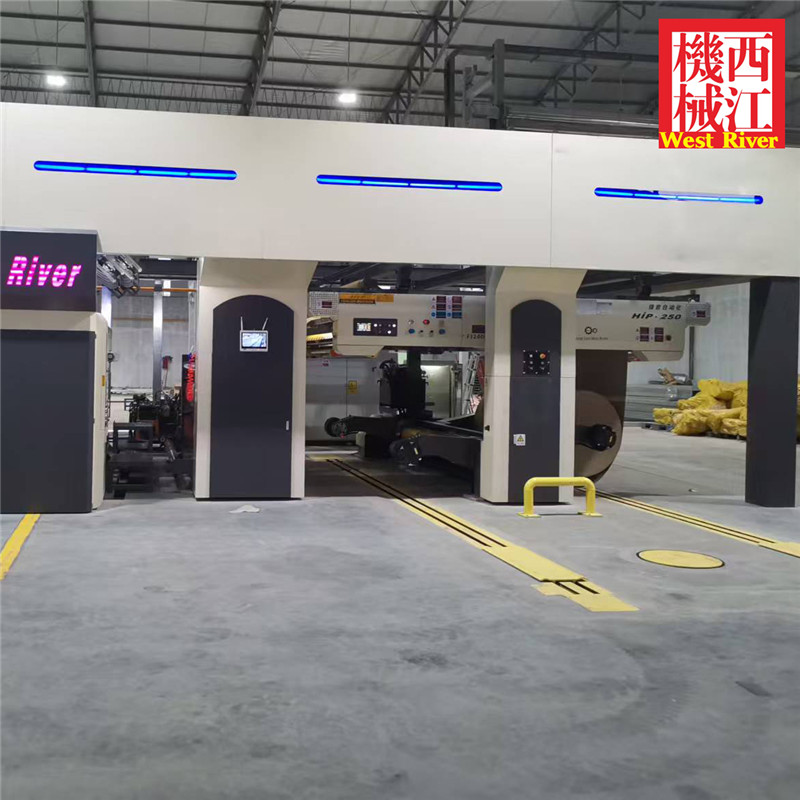

WEST RIVER EUROPE SMART 5.0 NEWLY 5Ply corrugated cardboard production line
Features:
5Mins change flutes without needed of preheating;
Laser gap, pressure control;
Sold Mechanical Design;
Non stop production for different order;
Pre-printed function is realized;
Moisture, tension, glue, speed, temperature cruise control under Smart 5.0 Beckhoff Control System;
WEST RIVER Smart 5.0 Beckhoff System control:
WEST RIVER NEWEST SMART 5.0 BECKHOFF Electrical control system for Corrugated Cardboard Production Line is the most advanced digital control system in China market now, and most of the current market other manufactures still uses old-fashioned PLC control. It uses two set of super controllers, (Inter industrial PC controller), one for control, one for data backup, any problems of one controller, it can switch to another controller instantly. Thus its data security has basically reached 100% guarantee, so customers don't have to worry about the equipment not working just one PLC breaks down and the whole line might stop like the old PLC control system.
The new system also comes with the learning function of big data, realizing foolproof automation control, thus it does not require operators to have rich experience to operate the equipment, which will greatly save manpower and reduce energy consumption for customers, and improve the production quality of cardboard.
At the same time, it adopts the latest fiber optic communication and ring network for data transmission of each devices in the production line. Compared with traditional PLC analog communication, it can prevent any signal interference from causing unstable production on the production line. On the main control station, customer's operators can achieve automatic temperature, glue application, tension, gap clearance, and pressure control of the equipment. The remote maintenance and monitoring system equipped in the production line allows our engineers in China to provide services and problem solution to customers through the remote maintenance system.
The electrical inverter uses Germany ABB or China INOVANCE for customer option. And other low voltage electrical part use France Schneider.

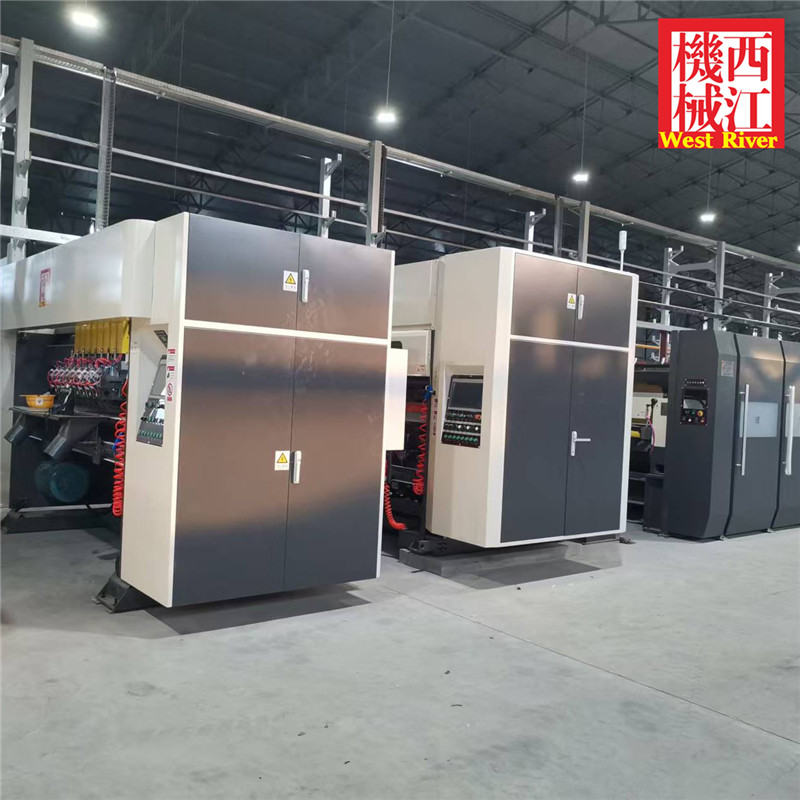

And it all meets the EU CE standard, and each control cabinet is equipped with the independent air condition to keep the temperature is suitable for the electrical parts.
